Johnny – Three Repairs

Posted: 25th June 2017 by Quinn Dunki in Hacks, Johnny

A glove, a drop target, and a matrix, oh my!


Pinball machines operate in a special realm where the normal laws of physics don’t apply. In this realm, complex machinery is working perfectly for a long time, and then three unrelated systems all fail simultaneously. The odds of that are astronomical in the normal world, but in pinball world, it’s par for the course. Race cars also occupy this rarified physics bubble, but that’s a story for another time.

Of course, what’s actually happening is that multiple systems are starting to experience occasional glitches, and our human brains write them off in the moment. Eventually these glitches accumulate sufficient frequency that we decide Now There’s a Problem™. In something as complex as a pinball machine, the perceived odds of this happening to multiple things at once is really down to confirmation bias, selective memory, and our powers of apathy towards fixing things.

Johnny has been overdue for some love, and he was starting to pile up a lot of little problems that I’ve been ignoring for a while. First of all, one of the nine positions in the Cyber Matrix toy was occasionally not detecting balls. Meanwhile, I was playing my favorite mode (NAS Cure), and the drop target (which acts as a gate to control access to the glove) started behaving very strangely. It was consistently in the wrong position- it was preventing access to the glove, when using the glove is the whole point of this mode. Furthermore, it was popping up and down somewhat randomly in other modes. It was acting as though the CPU didn’t know what position the target was in. Then, while investigating that problem, the glove started throwing error messages about “No Y Progress”. This is a pretty common glove error- more on that in a minute.

The point of all this was that it was clearly time to do a bulk repair of some issues. Let’s start with the Cyber Matrix switch, since that’s probably a simple problem (which I turn out to be quite wrong about).



Most pinball problems start with the dreaded Credit Dot. That little pixel illuminated next to the ‘Y’ in “Free Play”, which signals the operator that things are about to get expensive.

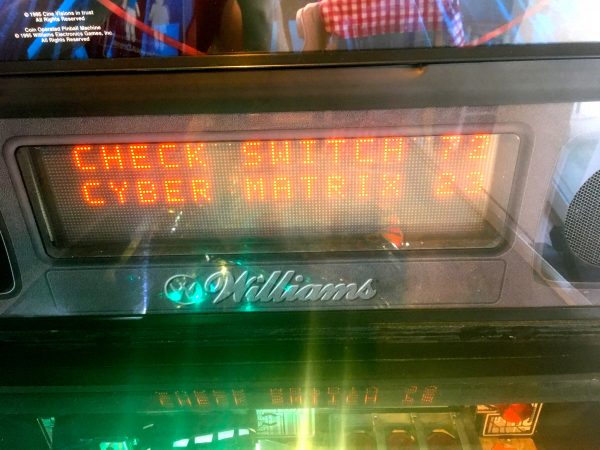

Going into diagnostic mode tells us what the computer thinks is wrong. In this case, position (2,3) in the Cyber Matrix toy is failing.


The way pinball machines detect failing switches is actually really clever. The switches tell the CPU where the ball is on the playfield. By definition, if the ball is supposed to hit a switch and doesn’t, the CPU doesn’t know where the ball is, and thus can’t know the switch in question failed to register. It can’t distinguish “ball not there” from “ball there but switch is bad”. The way around this is that the CPU makes the reasonable assumption that every switch in the game is going to get hit fairly regularly. How regularly depends on where it is. Ramp switches get hit a lot, whereas obscure parts of lesser-used toys may get hit very rarely. The game keeps track of how many rounds have been played since each switch was hit. Each switch has a threshold for the worst case of how often it should be hit. If a ramp switch isn’t hit, say, after five rounds, it’s probably not registering. A Cyber Matrix switch like this might not register for 30 or 40 rounds before becoming suspect. In this case, the Cyber Matrix switch has gone many many rounds without being registered, so the CPU flags it as “probably bad”. It’s a very clever statistical solution to an information gap problem.



Using the switch test mode, we can verify if the switch is registering. It seems to be fine here.



However, the first rule of pinball maintenance is “always test with a ball”. Switches behave differently when actuated by a ball. The travel distance is very specific, and length of time in the closed position will be different than your finger. Dropping a ball on the matrix, it still seemed okay. The computer is rarely wrong about this switch test, though, and it’s been reporting this error repeatedly over the past few months, so it’s worth pulling the Cyber Matrix anyway.


Other systems report errors in different ways. For the glove, it was throwing the “No Y Progress” error, which means the computer thinks it is moving the glove forward or back, but the sensors say the glove isn’t getting anywhere. There are many possible causes for this, which we’ll get to. In the case of the drop target, there was no error code at all. The only symptom was erratic behavior during play. The computer helps us find problems, but it’s not perfect. Okay, time to put Johnny under the knife. We have three systems we’re going to pull- the Cyber Matrix, the drop target, and the Y-control board for the glove.



First, the Matrix. Pinball machines are designed for maintenance, so this unit pulls right out, with only two nuts needing to be removed. There are four wiring harnesses to disconnect. Very easy!



Next, we need this little PCB on the back of the glove unit. This is the sensor unit that tells the computer how far the glove has moved. Since the computer thinks the glove isn’t moving, but it clearly is, I suspect this sensor isn’t reading properly. Spoiler alert: I turn out to be quite wrong about that.


The detector boards for the glove have an optosensor on them, and the threaded rods which move the glove have a butterfly-shaped wheel on their ends. These wheels spin inside the optosensors, alternately making and breaking the infrared light. This creates a pulse train that the CPU can use to count the rotations of the shaft. Since the pitch of the thread on that rod is constant, counting rotations tells the machine how far the glove has moved (and whether it’s moving at all).



Lastly, we need to remove the drop target. This is the trickiest bit, as it’s pretty buried in there, and lag-screwed into the wood. You need to be careful removing things from the bottom of the play field, because wood is not exactly great at holding threads over time. You only get a certain number of “uses” of those lag screws before the wood is too chewed up to hold anymore. The biggest crime is over-tightening. That’s the easiest way to strip the “threads” right out of the wood.


If you strip out a hole in the wood, there are some repair options. You can fill the hole with a piece of wood toothpick and wood filler (or bondo), then redrill a pilot hole. You can also install a metal threaded insert and replace the lag screw with a machine screw. When doing any such repairs, be incredibly careful not to drill or screw through the playfield, thus destroying the artwork and play surface above. At worst that can ruin the entire machine, or at best leave you with a very difficult and expensive repair.



Here’s the drop target assembly, wiggled out from behind all those wires and other playfield widgets.



Okay, all my problem children are on the bench, and replacement parts from the fine folks at Marco Specialties are on hand.


Let’s start with the drop target, since it’s a very interesting assembly. Drop targets are emblematic of what makes pinball machines so magical. It’s a physical thing that pops up and down, yet can be fully controlled both by ball impacts and software.

The way it works is that a solenoid pushes it up, against a spring wanting to pull it down. It locks in the up position on a detent. The ball hitting the target pushes it back slightly, knocking it off the detent, causing the spring to pull it back down. There’s also a small electromagnet on the side which can pull the target off the detent. That means the computer can decide which position the drop target should be in by raising it with the solenoid or lowering it with the electromagnet. Very cool! Of course, for this to work, the computer also needs to know what state the target is currently in. This is done with a microswitch at the bottom. The switch closes when the target is in the down position.

Here’s a little video demonstrating the drop target’s action:


Our problem is that the target is behaving erratically in different game modes. In NAS Cure mode, the target should be down, but the computer put it up. If I manually knock it down, the computer fires it up again. This suggests the computer is confused about what state the target is in, which suggests the state switch isn’t reading properly.



A quick continuity test with the multimeter, and sure enough, that switch is not registering when closed. It’s actually pretty rare for a switch to fail completely. Usually they become intermittent as the contacts become dirty or corroded.



The switch itself is pretty interesting. It looks like someone has soldered a length of stiff wire on to a shorter actuator. The nuts are also mismatched. All this suggests this has been repaired before.


Almost every pinball switch has a diode across it. This is because the switches are matrixed into rows and columns like a computer keyboard. This is an easy way to greatly reduce the number of inputs required to read the dozens of switches on the playfield. When one of these diodes goes bad, it can cause all manner of issues. This usually creates problems with a whole row or column of switches, but it’s worth testing the switch and diode in isolation, just to be sure.



With diode removed from circuit, the switch still tests bad, so out it goes. I actually replaced the diode as well, since I was in here anyway. The diode tested good on the multimeter, but the thing could be 24 years old at this point, so why not.



The new switch has a very long actuator on it, intended to be cut and bent as needed for the application. Here I have it temporarily mounted to determine what a good length will be.


Pretty much everything on a pinball machine is adjustable, which is a good lesson in mechanical design. Nothing in this world quite matches the drawings or behaves the way the simulations say it should, so make everything adjustable.



In this case, the angle of the switch is adjustable via slotted mounting holes. The actuator length isn’t critical, but that angle is. The switch needs to *just* close when the target is in the down position, without interfering with the travel of it. Interference could cause the target to not drop far enough (thus blocking the ball on the playfield), and would also likely damage the switch over time.


Next, let’s tackle the glove sensor board. This is an easy swap of the optosensors. You would think that, being solid state and subject to no thermal stress, that optos would never go bad. However any pinball person knows that somehow they do. Of course, that doesn’t mean you should make the mistake I am making here and jump to said conclusion.



Brand new optos ready to go in. They have five leads (an infrared LED on one side, and phototransistor on the other), so they can’t be mounted incorrectly. There are two optos side by side, which creates a quadrature pulse train that gives the CPU both direction and velocity information. This is the same technique used by old mechanical-ball mice on desktop computers.



This is a straightforward desolder/resolder operation. A very easy, and also it turns out, completely pointless repair.


Lastly, I’ll take on what I thought would be the easiest fix- swapping the bad switch on the Cyber Matrix. Pinball machines laugh at the best-laid plans of humans.



First the PCB is removed from the metal-and-wood Matrix unit. You can see the LEDs that I installed way back when.



Exhaustive testing on the switch with a multimeter revealed that, sure enough, the registration was a little flaky. Roughly 1 out of 30 closures would not register. That’s enough to cause significant gameplay problems. As I said, the computer is rarely wrong about bad switch detection, despite the operator’s powers of ignoring the problem and hoping it will go away.


The first step is to desolder the old switch and get the new one ready.



Using the old switch as a guide, I bent and cut the actuator on the new one to match. I’m already off to a terrible start here, because I failed to remember that these actuators are modular. You can simply move them from the old switch to the new one and save all this bother. The first of many facepalms.


Astute readers may have already spotted two significant problems with the new switch in the above photo. I didn’t notice until I was ready to install the new one that the switch is a solder-lug style, not a PCB-mount. It never occurred to me to check for that when ordering the part. Undeterred, I set out to convert this to what I needed.



Using the Dremel with a grinding disk, I made the big solder lugs into little PCB pins. I was pretty chuffed with myself at this point, but was about to discover problem number two with this replacement switch.



Cue sad trombone. It turns out these switches come in two different pin spacings- symmetrical and asymmetrical. This switch is the wrong type.


Marco Specialties very graciously replaced the part for me, although the new one was also the solder-lug type, as they don’t carry the PCB-mount style (which are uncommon in pinball machines). My Dremel trick was employed again, and I was ready to go.



New switch with the right pin layout, with pins converted to PCB-mount, and the actuator transferred over. We’re ready to go!



Back together, and all nine switches are registering reliably now. Result!



Installation is the reverse of removal for all three assemblies, and then we’re ready to test.


The drop target and the matrix were now working great, but the glove was still having problems. At this point I stopped and put the thought into the problem that I should have originally. The symptom is that the glove, when moving forward (towards the player), would crash into the end of the arm, as though the computer thought the arm was longer than it is. That’s why it throws the “No Y Progress” error- the CPU is signaling the Y-axis motor to turn, but the gantry is physically pinned against the frame, and the optosensor tells it the glove isn’t moving. To understand what’s wrong, we need to understand how the glove travel works.

The glove does not have limit switches on the ends, as you might imagine. Instead, there’s a single switch in the middle of the arm that sets the “zero” or “home” position. The computer assumes that’s the physical center of the range of travel, and it counts turns of the threaded rod to measure relative travel distance from that point. It “knows” how long that rod is, what the pitch of the thread is, and thus how many turns it can get away with before it has to stop. If it’s making that fixed number of turns for full motion, but crashes into the end of the arm before it gets there, what does that really mean? It means the zero position is wrong. Like everything else, this is adjustable. The switch that sets zero is actuated by a metal plate on the moving gantry of the glove, and this plate can be adjusted to control when the zero position is registered. The fact that the glove crashes into the front of the arm but not the back means the zero switch needs to be closed a little sooner.



Using this diagnostic mode, we can see that the optosensor is registering travel correctly, but it doesn’t get to the same negative value moving forward as the positive value it reaches moving backwards.


The L-shaped black plate on top of the gantry activates the zero switch. It has a slotted hole that controls the angle of the plate, and this angle controls when the switch is activated. Moving the plate upwards causes the zero-point to move forwards in the coordinate space of the CPU. The silly thing is, I’ve had this exact problem before, and simply forgot that zero-point-drift is the cause. My optosensor adventure was a wild goose chase brought on by jumping to conclusions.

So why did this get out of adjustment, if I had set it correctly before? Well, recall that the huge electromagnet in the glove pulls the ball upwards and into the mechanism with considerable force. Over time, those repeated upward impacts will tend to cause that L-shaped mounting plate to drift upwards, which causes the zero point to drift forwards. Physics!

With that figured out, all three systems were now working correctly once again. Naturally, I had to play a few hundred games in the name of science. It’s important to verify one’s results. For science. Now if you’ll excuse me, I need to go play more pinball do more science right now.
