Electric Steam Boiler – Shell Preparation

Posted: 18th March 2018 by Quinn Dunki in Hacks

Getting our boiler shell ready to work on.



We demonstrated last time that D.E. Johnson’s old design for an automatic electric boiler should indeed work with the modern components we were able to source. Let’s get to work actually building the thing, starting with some basic prep on the shell.

As previously identified, the shell is a piece of 4″ Schedule L copper water pipe, 12″ in length. This should give us plenty of steam to power engines up to (and possibly exceeding) a 1″ bore. Getting a hold of this piece of water pipe might have been tricky prior to the internet, because metal suppliers generally want to sell you things in 20′ lengths or so. Since this stuff runs about $80 a foot, and we don’t fancy making twenty boilers, that’s not a great option. Finding an off-cut is the way to go, but I’m honestly not sure where I would go locally for this. Perhaps a plumbing supplier that serves multi-dwelling construction companies? I don’t know what 4″ copper pipe is used for. Someone who needs a whole lot of potable water in a hurry. Anyways, here in the lazy internet age, it took me about four clicks on eBay to find exactly what I needed. Whoever said life used to be better in the olden days never tried to source one foot of 4″ Schedule L copper water pipe.



..

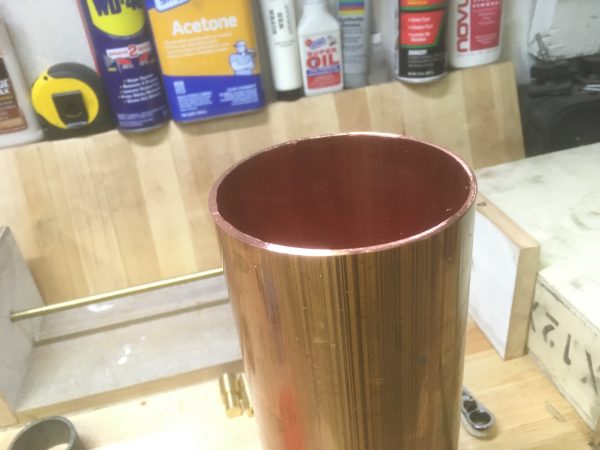

Copper sure is purty, and I thoroughly enjoy holding that lovely piece of modern metallurgy in my hands.



Since the ends of the pipe are saw-cut, I thought it would be nice to square them up. This is probably not strictly necessary, but it seemed like an interesting challenge and might make fitting the heads easier later.

My first attempt involved files. Copper files just fine, but after 20 minutes or so of effort, it was clear this wasn’t going to be a good way to go. It was going to be very difficult to get it square all the way around with simple 1″ wide files and my lack of hand-eye coordination.

My next thought was sanding. The cut was overall pretty square, it just had high and low spots in it (probably made worse by my attempts at filing). If I could sand it flat, that might be good enough. Depending on where it ends up, I might also be able to get it square from there.



..

With a piece of 80-grit on the surface plate, I set to work.



Sanding was working, but it was a lot of work. Copper is very soft and sticky, so any kind of abrasive process gets tiring in a hurry. It was like pushing a sack of potatoes around on a sheet of velcro. The task was sufficiently physically demanding that I wasn’t going to get anywhere fast. The results were better than filing, but it was even slower and more tiring.

The obvious candidate for this job is, of course, the lathe. I had been dancing around this, since there wasn’t an obvious way to fixture it. I decided that rather than dedicate my muscles to sanding, I’d prefer to dedicate my brain to solving the fixturing problem. Afterwards, I will dedicate my liver to processing fine whiskey. Each organ has an ideal purpose. Now then, if I can get it mounted in the lathe, the machine will do all the work and I’ll end up with something both flat and square.

The lathe operation required is facing, so we need to get it mounted such that one end of the tube is exposed at a right-angle to the tool bit, and reachable by the tool post. The chuck end is pretty easy- I can grip the insides of the tube by expanding the three-jaw chuck jaws. It was the far end that was the challenge. I couldn’t rely on the chuck alone to hold such a large piece. The other end needed support. A steady rest would be a good choice here, but mine is much too small to fit around a 4″ diameter pipe. That left the tail stock. Of course, we’re dealing with pipe, not solid stock, so the tail stock has nowhere to go.

If I could come up with some sort of insert that would fit tightly inside the pipe, the tail stock could then be centered on that, and thus support the piece. This supporting insert must be a tight fit on the inside surface of the pipe, because it needs to hold against the cutting forces of the facing tool. Since this is a large diameter and copper is very sticky, those cutting forces could be considerable.  A simple method might have been to cut a circle of wood sized to be a very tight fit, and hammer it into place. I considered that option, rejected it as way too likely to work, and set about doing something pointlessly complicated.

I’ve made plenty of hay on this blog about how 3D printers are kinda overrated, and how I’ve really struggled to find uses for mine in the two years I have owned it. In addition to being endlessly fussy and requiring constant tweaking, the parts that (very very very slowly) come out of it are sometimes interesting but mostly imprecise plastic junk. For most things, in my cynical opinion, other methods of production or repair are faster and result in a better component. That attitude is not particularly fair, however, because these machines definitely have their uses and I am finding niches where 3D printing is just the thing. My primary use (not counting the “finding excuses to use it” type of project) has been project boxes for electronics. This is not as trivial as it sounds. Making enclosures suited to a homemade circuit board with all the various openings for LEDs, ports, etc, is not easy. You start with some prefabbed box bought at McMaster (previously Radio Shack- moment of silence…), then go to town with drills, files and old soldering irons, trying to cut, beat, and melt it into something like the shape you need. 3D printers are a brilliant solution to this problem. You can get exactly the enclosure you need for very little money, and the end result looks pretty decent.

All that is to say that lately I’ve been finding a new niche with tangible positive results. It seems that machine shop work is a great compliment to 3D printing. Machine shops have a set of chronic challenges that 3D printers are really great at solving, including organizing weirdly shaped things, and producing weirdly-shaped brackets to hold things. The latter is what we’re on about this time. Can I 3D print a tail-stock fixture to hold the 4″ water pipe sufficiently securely for a facing operation? Let’s find out!

I got a picture in my head of what this fixture could look like. It needs to be round (no, for reals), have a solid area in the center for the tail stock to go, and it needs to be expandable. This last bit is key- we need to be able to tighten it inside the pipe, because we’re relying on friction alone to hold it in that pipe against all the forces applied by the cutting tool and the tail stock. I wasn’t sure if 3D printing was up to the task, but it seemed fun to find out. I knocked out this design in Fusion 360:



..

This plate is mostly round, but is also expandable via the slit. The slit is curved to reserve the center area for the tail stock. On the left is an area for an expansion bolt to be threaded into, and the weird little angular area is clearance for the wrench to work said bolt.



This seemed definitely too stupid to work, but that has rarely given me pause in the past, so off to the PrintrBot we go.



..

Luckily, this is a very easy print. Big flat things are easy to set up and go fairly quickly. I started with 20% infill, but in a second version I bumped it to 40%. 100% would be ideal, since we need a lot of strength here, but that would have taken enormous amounts of time to print, and I needed to strike a balance somewhere.



These days I have my PrintrBot pretty dialed in, so when I ask for a dimension, I generally get it (within the tolerances of plastic squeezed out of a glorified pastry bag). That was the case here as well, luckily.

The expansion works by inserting a bolt through one tab, and letting it seat in a blind hole in the other tab. A nut is threaded between the tabs, and loosening this nut applies outward pressure on the tabs, expanding the joint and tightening the fixture inside the pipe.



..

The fit came out great, so we’re ready to try setting this up on the lathe!



..

Here’s what it looks like with the expansion pressure applied. You can see the tabs are spread, and the slit has opened up as needed. So far so good!



In order for the tail stock to apply support to this fixture, it needs to be center-drilled. The support will be in the form of a live (ball-bearing) center in the tail stock. 3D printing is nowhere close to precise enough to include a feature like a center-drill, so I did this after the fact. With the fixture installed tightly inside the pipe, I set it up in the lathe to prepare for center-drilling.



..

Supported only by the inside jaws on the chuck here, I bumped it as needed to get close to zero run-out at the far end. Of course, mass-produced water pipe isn’t perfectly straight or round, but I was able to get it within a few thousands total indicated run-out. We’re only doing a facing operation here anyway, so it doesn’t have to be perfect. The stock is pretty heavy, so this is more about balancing the load in the lathe.



Being supported only by the chuck like this is pretty precarious, but it only has to survive long enough for a center drill, and that’s a very low-tool-pressure operation.



..

With the pipe running true, I was able to very gently get a good center drilled. The plastic is so soft that I just turned the lathe by hand to drill this hole.



Okay, time to give this a shot!



..

Here’s the final setup. The tool post is at the end, ready to face the exposed edge, and I have some wood on the ways to catch the pipe if it comes loose. Copper probably wouldn’t do any damage to induction-hardened ways, but why risk it? I knew this setup was sketchy, so safety first. Or… safety eventually, anyway.



The next question was what kind of tool bit to use for this? It’s well known that copper is very difficult to machine. It’s so darned soft that it’s like cutting butter with a bowling ball. Sure, you can do it, but the ball will be a mess and who wants that butter on their toast when you’re done? Okay, that metaphor kinda got away from me there, but the point is copper is tricky. I figured it was going to be similar to either aluminum or brass, both of which are also soft and have unusual tool grinds required as a result. Aluminum is gummy and brass is grabby. Aluminum needs a very steep top rake on the tool to cut in and start a chip through the gumminess. Brass is the opposite- it needs zero top rake in order to keep from getting grabbed and sucked into the material. Which one will copper be like? I could have probably looked this up, but instead I guessed and mounted up my brass-angled facing tool. I was mistaken- turns out an aluminum-angled tool would have been the right choice. In any case, my tool did actually work okay, although it was a pretty tense operation.



Here’s how it went:



I went very slowly and took extremely light cuts- 2-4 thousandths at a time. You can hear it rubbing towards the end because of my poorly-chosen top rake angle, but a lot of that noise is also just the softness of the copper combined with it being an interrupted cut (since we’re squaring up a rough saw line).

I managed to get one very very close to squared up all the way around, but the stresses on my 3D fixture got too high and it popped loose.



..

It’s tricky to see here, but the tube popped off the center point, likely because of flexing in the plastic fixture. I was glad I had put that wood down, because it made an otherwise scary moment into a minor annoyance.



Turns out it was a bit worse than it first appeared- my fixture experienced a key structural failure. For the other end of the pipe, I printed a new fixture at a higher infill, to hopefully get more strength.



..

You can see here that the expansion tab cracked from the pressure of holding the plate in place against the tail stock and cutting forces. The crack occurred along the layer lines, which is of course how 3D prints always fail.



I knew this would be a weak point of the design, but aside from printing the piece solid, I wasn’t sure what to do about it. I wish 3D printer slicing software had a way to designate a particular area to be solid. The vast majority of the piece doesn’t need to be that strong, but if I could print those tabs solid, it would be the best of both worlds. If anyone knows a way to do this, let me know in the comments so I can level-up my 3D printer-fu.

My second print at 40% seemed to hold up about the same, and it survived long enough to face the other end of the pipe.



..

The second one failed in the same way, but the denser infill did help with rigidity in the fixture, and it held the center drill better. In this photo you can see I got a pretty decent tapered surface around the center hole, which is what the live center in the tail stock is actually anchoring against.



Despite all the drama, the end result was pretty darned good.



..

I never quite got to a continuous cut all the way around before the fixtures gave up their respective ghosts, but I did get within a couple of thousandths of flat and square. This is most definitely good enough for what we need to do.



This was a pretty interesting exercise in pushing my lathe, my 3D printer, and the laundry soap I use for my underwear to their limits. Since then I’ve found other interesting uses for my 3D printer in the machine shop, including these:



..

These soft jaws for the vise came from an OpenSCAD design on thingiverse. Being OpenSCAD, it was easy to tweak the parameters to fit my vise. Nice!



The second tool is one that mrpete222 has been showing on YouTube. It’s a 3D printed indicator holder for the tool post. This is a very quick way to get an indicator next to the work for dialing in a four-jaw chuck, bumping in a three-jaw, measuring runout, checking surface flatness, etc. Very handy! Unfortunately, his version was built around a small Shars indicator of a specific type, but I prefer a full-sized indicator. His thingiverse item only includes STL files, which is a bummer. It’s always disappointing when people don’t include their original model file from whichever 3D package was used. STL files are like binaries in an open source project- great if it’s already exactly what you need, but useless if it isn’t. Anyways, with his as inspiration, I was able to remodel it in Fusion 360 in about 10 minutes. I often forget how fast modeling is in Fusion 360, and I waste a bunch of time trying to massage other peoples’ STL files to do what I need, instead of just doing it myself.



..

My version of Mr. Pete’s holder, sized for big-girl indicators and an AXA tool post.



If you’d like my version, it’s here on thingiverse, complete with Fusion 360 source files so you can modify it for your indicator or tool post as needed. This tool is a good example of where 3D printers accel- it’s a very weirdly shaped thing, needs to be customized to my specific situation, but it doesn’t need to be super precise or super strong. The more I look around the machine shop, the more little things like this that I find!



Okay, that’s all for our boiler for now. With the shell in shape, we can get started building the parts. Stay tuned for heavy machining content, coming your way.
