The raison d’être of this steam boiler project has been to have a boiler than can operate steam engines in a pleasant indoor setting. No smoke, no fumes, no dead dinosaurs being burned (on site). We’ve built an actual boiler, so now it’s time to finalize the part that makes it an electrical one.

My basic idea is to build a box around the heating element that sticks out of the end of the boiler. This will dress things up, keep all the high-voltage stuff out of harm’s way, and provide easy servicing of the parts. There will necessarily be wiring running to the far end, where the thermoswitch is located. This wiring will be hidden inside the base of the boiler. The idea is to make it all look kinda like a traditionally-fired boiler, and not like the glorified electric tea kettle that it kinda is.



I started by mocking up the electrical box with cardboard and gaffer tape (on the left in this photo). It forms a curve over the end of the heating element, enclosing the high voltage contacts. I also mocked up how all these parts will eventually sit on the base (yet to be made) to eliminate future surprises.



Mocking up the electrical box with cardboard was very important here, because I needed to get the size just right. It needs to cover the heating element, but leave the expansion port on the end of the boiler clear. The box also needs to have enough interior space to hold the contactor, power switch, fuse, wiring, and so forth. It was also important that the box not actually touch any part of the boiler, because it would conduct heat into the electricals and damage them. Once I had the dimensions perfect, I was able to easily transfer the dimensions from the cardboard to the real stock.

I wanted to make this box out of brass sheet, because I felt it would look nice. You may recall the trouble I had previously trying to work with brass sheet without proper sheet metal tools. I certainly recalled that. However, we now have a glorious and lovely milling machine here at Blondihacks World Headquarters, so I decided to give that a try. I’m happy to say it worked beautifully.



Cutting sheet metal on a mill is a bit unorthodox, and not fast, but the resulting edge is precise and flawless. Aluminum channel made a good clamp to prevent vibration, and the T-slot on the table was used for bit clearance.



Next, I needed to make the curved top of the box. The junk pile provided a scrap of pipe of roughly the correct radius for the curve I wanted, so I used that as a form.



Some generous application of angry air from the Map/Pro torch, and the brass flopped nicely over my forming pipe.



Here’s how this piece turned out. I couldn’t be much happier with this. It’s exactly the look I was going for.



The next challenge was the rear plate for the box. I wanted it to form a round opening with the top surface, so that it neatly slips over the heating element without touching it. This means I needed a half-circle cut-out in the part. I was very happy with my milling-machine cutting method, so I wanted to use that, but I needed a curve this time. There’s no fancy CNC here- my mill is a manual machine. It does, however, have a DRO, and DROs often have a curve-cutting feature. The way they work is you input various dimensions and other information about the curve you want, then the DRO gives you a “recipe” of sorts. It puts numbers on the display for each axis, and you have to zero them out with the hand wheels. Then you push a button and it gives another set of numbers. You’re effectively cutting a polygonal representation of the curve. You might call it Human Numerical Control. There’s a fair amount of skill in doing it though, because you need to move smoothly in multiple dimensions at once with the hand wheels. It feels like playing the drums or double-clutch-downshifting a racecar in a corner. You need multiple limbs to be moving independently.



In order to gain practice with the curve feature on the DRO, I practiced on paper with a pencil in the quill.



After practicing for a while, I decided this would probably work, but it was also a bit of silly overkill. I decided to go old school instead, and did a simple layout of the curve on the part.



A little bit of math and some quality time with dividers is all that was needed to lay this out.



To cut the curve, I chopped out the rough outline with a hacksaw, then finished it up to the line with a Dremel sanding drum. This worked perfectly and was a lot simpler than the DRO method (although that was fun to learn).



With some patience, good lighting, and a nice layout line, it’s not too difficult to get a nice curve by hand.



This thin sheetmetal box needs some mounting points. We need to be able to affix it to the base, and we also need a removable door on the front. Both of these needs will be met with some square screw bosses.



To make the bosses, I squared up some brass stock on the mill, cut the pieces, and then milled them to size.



The blocks were then drilled and tapped 6-32 on the mill.



Now we were ready for some assembly, so it’s time to fire up the torch. All the parts of this electrical box are silver soldered, starting with the mounting blocks. This was a bit tricky, because they are small and the wind of the torch wants to blow them around. I used a combination of scrap blocks to weight them down and provide backstops to keep them from moving. I didn’t succeed perfectly (some of them definitely moved), but they came out okay,



Five of the blocks are soldered to the front to attach the door. Four more blocks were soldered to the bottom (they’d be facing up in this photo) to providing mounting points in the base.



Next, the back wall needed to be attached. This was tricky, because I wanted the sheet metal to sit precisely edge-to-edge, with no misalignment or overlap. Once again, even with everything perfectly arranged, the torch would tend to blow things around. I handled this by arranging the pieces carefully on the fire brick, then put some weights on top to keep it all still. I also applied very light clamping pressure to the sides to keep the curves tight together. This all worked well to hold the alignment precisely, but there was an unanticipated side effect- as the brass softened from the heat, the weight on top tended to deform it. The back was perfectly fitted when I was done, but the sides had a slight bow in them. I was able to mostly correct this after the fact, but it’s not perfect. Live and learn!



Soldering the back went very well, save for some slight deformation from my fixturing.



The next step was to figure out how to mount the contactor inside. I wanted it suspended off the deck, in case water gets inside this box. Steam engines are wet environments, so it’s wise to anticipate water getting everywhere you don’t want it. The other catch is that the contactor has a very large heat sink on the back of it. This is presumably needed when the contactor is switching heavy loads, such as big AC motors. My application should be pretty easy for it, bit I still wasn’t totally comfortable foregoing the heatsink. I needed to do something though, because with the heatsink there was no way the contactor was going to fit.

My solution was to remove the heatsink, then use those attachment points to mount it to the wall of the box with a heavy chunk of brass. This should effectively make the entire electrical box into a heatsink for the contactor. The electrical box is designed to enclose but not touch the end of the boiler, so it should remain relatively cool.



I grabbed some scraps of brass off the junk pile and soldered them together to form this C-shaped mounting bracket that would fit where the heatsink used to mount on the contactor.



I measured carefully for the position of the mount, and drilled all the holes. The contactor bolts to the side of the box with 6-32 screws, so it is easy to remove if it ever fails.



Then I placed the contactor in place against the mounting block, and transfer-punched the mounting holes used by the heatsink.



Here’s how it all fits together! There’s just enough room for the contactor, without it touching the boiler behind it, or the floor below it. The front surface just touches the cover of the box, so that we’ll be able to cut a hole to see the “On” light on the contactor.



With the fabrication on the box done, it was time to clean up all the silver soldering mess. People always say you can clean up silver-soldered parts by pickling them in something like Sparex #2. I’ve honestly never had this work very well, but everyone says it’s the thing to do. I bought some fresh Sparex and gave it a try once again.



I mixed up the Sparex #2 at maximum strength, and soaked the part for a few hours. The result was… no apparent change. I have never had pickling do a damn thing, and I really don’t know why.



With yet another failed attempt at pickling, I went back to my old standbys of sandpaper and Scotch Brite.



With a little manual effort, the box cleaned up beautifully. Sorry pickling zealots, but I just don’t get what you’re going on about.



The next part to make is the door on the front. It’s held on with five cap screws, which is completely unnecessary, but looks very “steamy”.



The basic outline of the cover was simply traced from the carcass, cut with a hacksaw, and filed to final shape.



For the door’s mounting hardware, it would be nice if we could just measure and lay them out, knowing they would line up. However, recall that it was difficult to keep the mounting blocks from moving during soldering, so their positions are all little… freestyle. Luckily, transfer screws to the rescue. I talked about how great these are in a previous post and that hasn’t changed. They are, in fact, still great.



Getting these holes right was a simple matter of marking the locations with transfer screws in the main box, and then making some brass atoms go away on the drill press.



Thanks to transfer screws, they lined up perfectly on the first try. Note the arrangement of them is, shall we say… “artisan”. The British call it “character” when things are poorly aligned on their sports cars, so let’s go with that. German engineers are taken out back and shot for this sort of thing, so they don’t have a word for it.



Now we need some controls. There needs to be an on/off switch, of course, and very importantly there needs to be a fuse. We mustn’t lose sight of what we’re building here- a high voltage circuit dunked in water. We’ve intentionally built a toaster in a bathtub. This is no time to skimp on safety. A fuse is one part of that.



The power switch is from the junk pile and is of unknown origin, but it says it’s rated for 15A/125V, so it should be fine. The fuse holder will hold a standard 5×20 10A fuse. The heating element draws 8A, so I feel good about these ratings. I laid out their positions on the side of the box, then cut, drilled, and filed them open.



Looking good! The switch is one-time-press-to-install type, so it’s not pushed all the way in for this photo opportunity. Not shown is that I also made a hole for the incoming mains cord, with room for a rubber grommet to protect it from the brass edge.



The vast majority of the wiring is done inside this box, but there’s one part external to it. The big heating element lives in one head (inside our new box), but the opposite head has the thermoswitch in it. This is the 120V temperature sensor that tells the contactor when to do its contactor thing. The wires for this thermoswitch need to get from one end of the boiler to the other. I made a YouTube video all about this, and it’s available here. If you like this video, sign up on Patreon. I post lots of private videos just for Patrons!

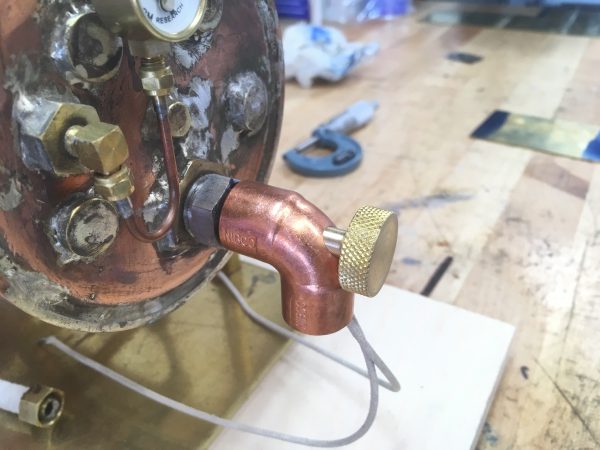

This brass knob gives tuning access to the thermoswitch, and the brass piping routes the wiring down under the base.



The final step is to wire everything up! I won’t be blogging this part, but I did shoot video of the whole process. That video is only available to Patrons, so sign up now to see it!  I post lots of special content just for Patrons, so sign up to get the full Blondihacks experience.

I do want to cover one wiring topic here, in the interest of safety. As I said, we’ve basically built a toaster in a bathtub here, and the most important tool in our safety toolkit is grounding. Every single piece of metal on this boiler is separately grounded to a proper third-prong plug, and it should only be used in properly grounded outlets. The heating element inside the boiler has a protective coating isolating the high voltage from the water, but if that should fail, the water, and by extension every metal part touching that water is suddenly energized at 120V and eight amps. You really want that current to be dumped to ground without passing through your pancreas, hence the meticulous grounding. I cover all the details of the grounding features in the Patreon video, but I didn’t want to go without mentioning it here in writing as well.

To see the boiler powered up and running an engine, you’ll need to watch the Patrons-only video!

The electric steam boiler project is now complete, which is hard to believe. It’s been almost a year-long project, but I’m very happy with how it turned out. You’ll be seeing more of it in these pages occasionally, as I’ll be making tweaks and improvements to it. I’m thoroughly enjoying my forays into steam engineering, so this won’t be the last we see of this charming little Victorian death machine.
